GEM-LTE and magnetohydrodynamics: a supplementary view

This directory is a supplementary view of the GEM-LTE model that applies its equivalence to magnetohydrodynamics (MHD). The core model (in src/ and experiments/) solves Laplace’s tidal equations with tidal forcing on a shared manifold. The documents here ask what that model looks like when read as a toroidal plasma device:

• steady Euler flow and MHD equilibrium obey the same equations;
• rotation and gravity enter as the absolute vorticity (in place of current) and the Bernoulli function (in place of pressure);
• the curl-free tidal force plays the part of external coils.

Three device types organize the picture: the tokamak (axisymmetric), the reversed-field pinch (axisymmetric, with a self-reversing toroidal field) and the stellarator (non-axisymmetric, longitude-selective).

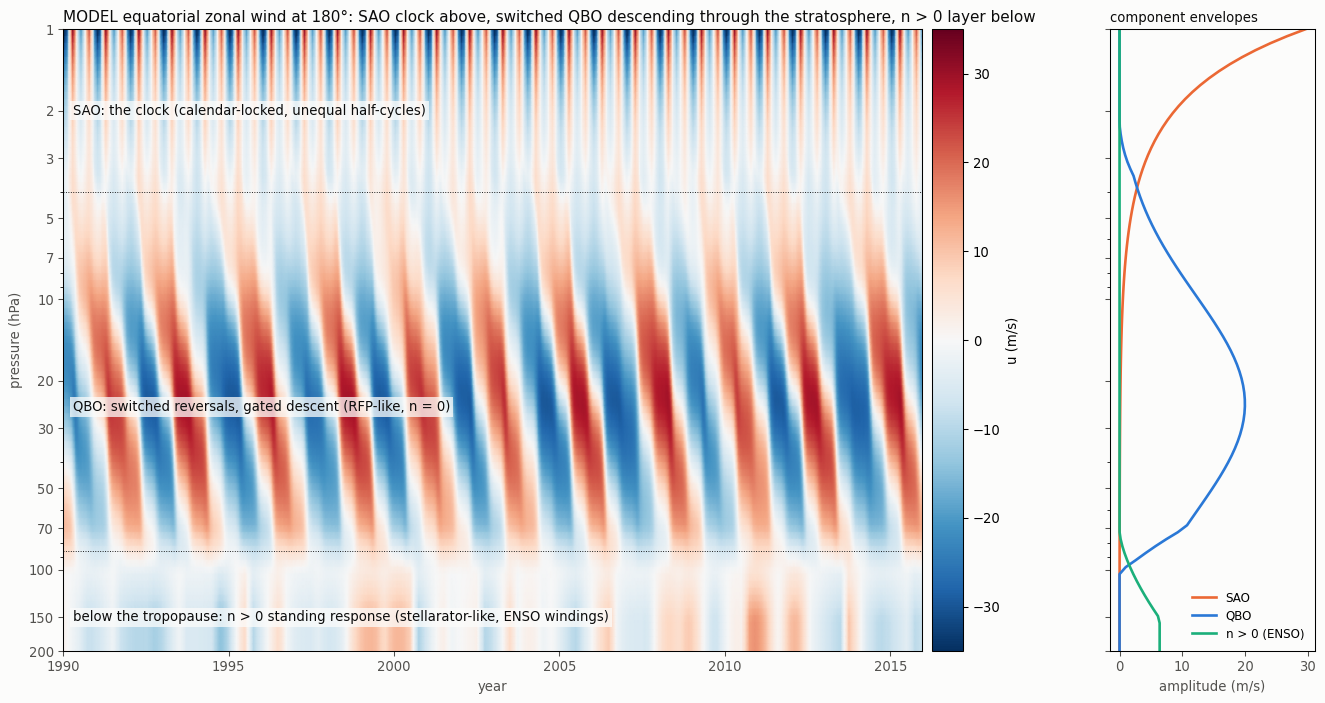

The unified view (model_column.py): a model of the equatorial zonal wind from 1 to 200 hPa.

• At the top, the semiannual oscillation (SAO): a calendar-locked clock.
• Through the stratosphere, the QBO: switched reversals that descend, the reversed-field-pinch layer with zonal wavenumber n = 0.
• Below the tropopause, a longitude-pinned standing response driven by the ENSO windings: the stellarator layer, n > 0.

The structure is modelled, not fitted point by point; the drive timing, gating and ENSO response come from the fits described below.

Documents

Document	What it covers
landreman_gfd_synthesis_framework.md	The original framework note mapping Landreman’s analytic 3D MHD equilibria (arXiv:2609.26742) onto GEM-LTE. Kept unchanged for reference; its unsupported claims are corrected in the next document.
landreman_lte_synthesis.md	The checked synthesis. The exact link: the LTE response is a harmonic oscillator in the manifold, so fitted windings act like field lines with a rotational transform. Empirical tests, and section 8: the MHD ↔ rotating-fluid factor table, poloidal versus toroidal forcing, and the ENSO evidence (pinned standing mode, ORAS5 thermocline).
qbo_tokamak.md	The detailed QBO device. A reversing poloidal drive; the comb impulse and the lunar ecliptic-latitude modulation, giving the 2.370-yr beat; the saturating core and strobe-gated penetration that make the shoulders; the helical, high-winding ripple; and the QBO record read as an MHD “shot” (1 yr = 1 s).
qbo_switching_plasma.md	The short version: the QBO as a switched toroidal plasma, with existing laboratory systems for each ingredient (AC tokamaks, reversed-field pinches, oscillating-field current drive, the Plumb–McEwan tank). Phase-locking, absolute-phase and SAO tests.
stellarator_emulation.md	The stellarator layer. Within the Pacific basin ENSO acts as one standing mode. In the equatorial winds, wavenumber > 0 emerges below 70 hPa and follows the ENSO windings, while the zonal-mean flow above follows the QBO.

Selected figures

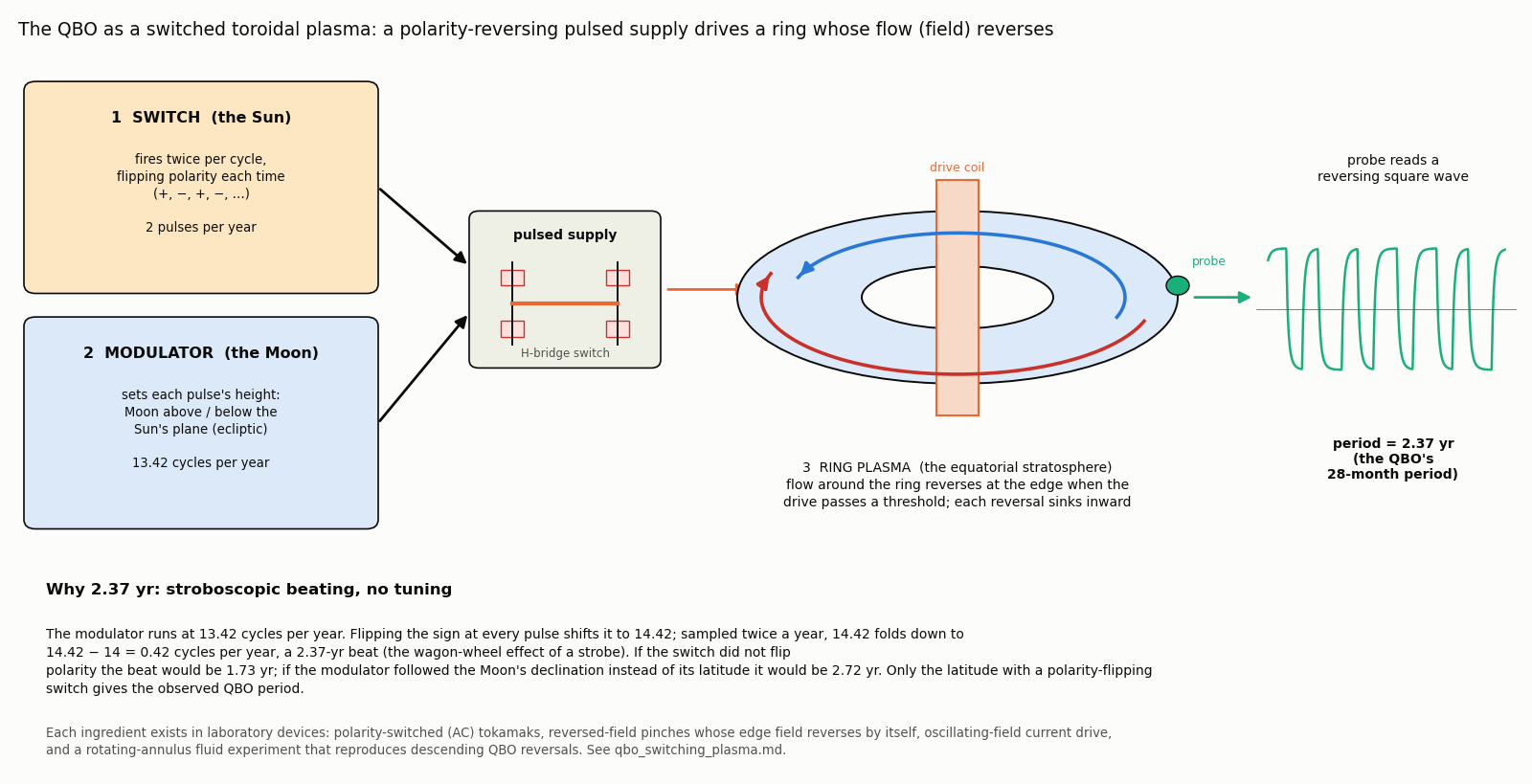

The short version as a schematic. A switch (the Sun) fires twice per cycle with alternating polarity. A modulator (the Moon’s ecliptic latitude) sets each pulse’s height. A ring plasma reverses its edge flow when the drive passes a threshold. The stroboscopic beat gives the QBO’s 2.37-yr period with nothing tuned.

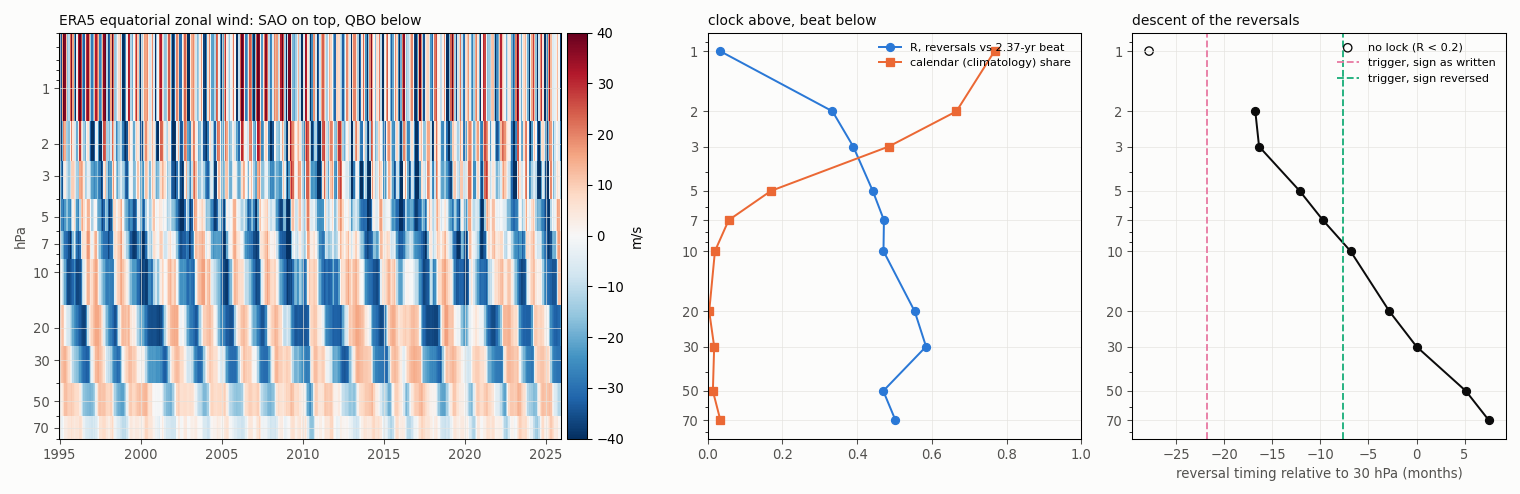

ERA5 equatorial winds, 1–70 hPa.

• Left: the time–height field.
• Centre: the calendar dominates at the SAO level, and the 2.37-yr beat takes hold below it.
• Right: reversals first appear at 2–3 hPa, then descend at about 1 km per month.

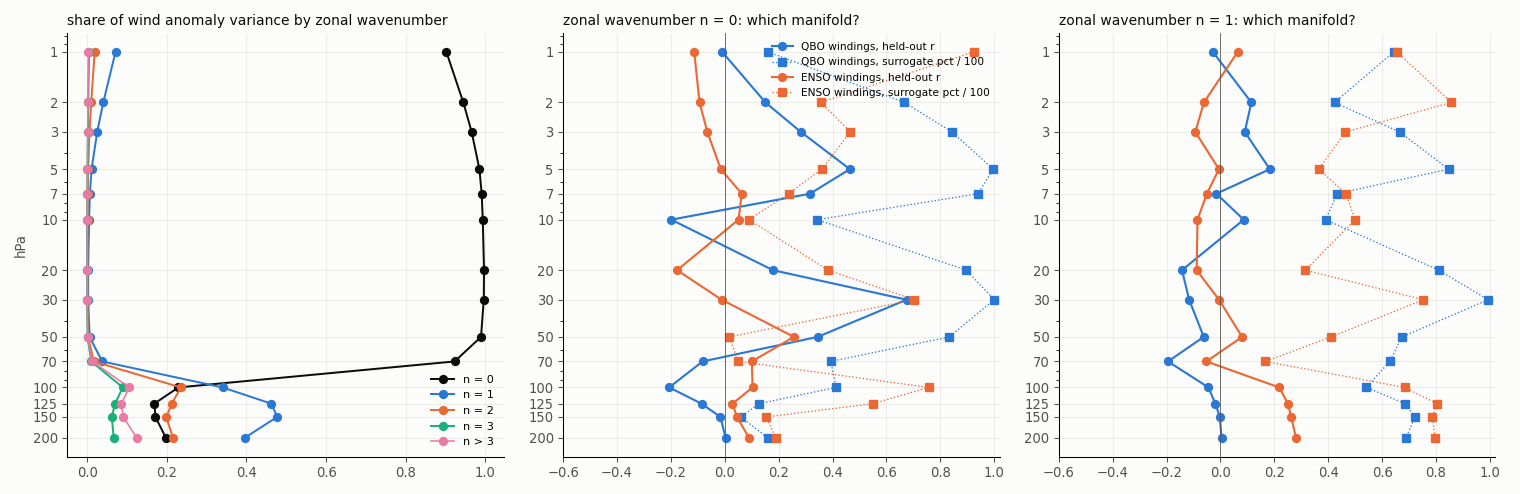

The split between layers, by zonal wavenumber.

• The zonal-mean share of the variance falls from 0.92 to 0.23 between 70 and 100 hPa.
• Above that boundary the zonal-mean flow follows the QBO windings; below it, wavenumbers 1–2 follow the ENSO windings.

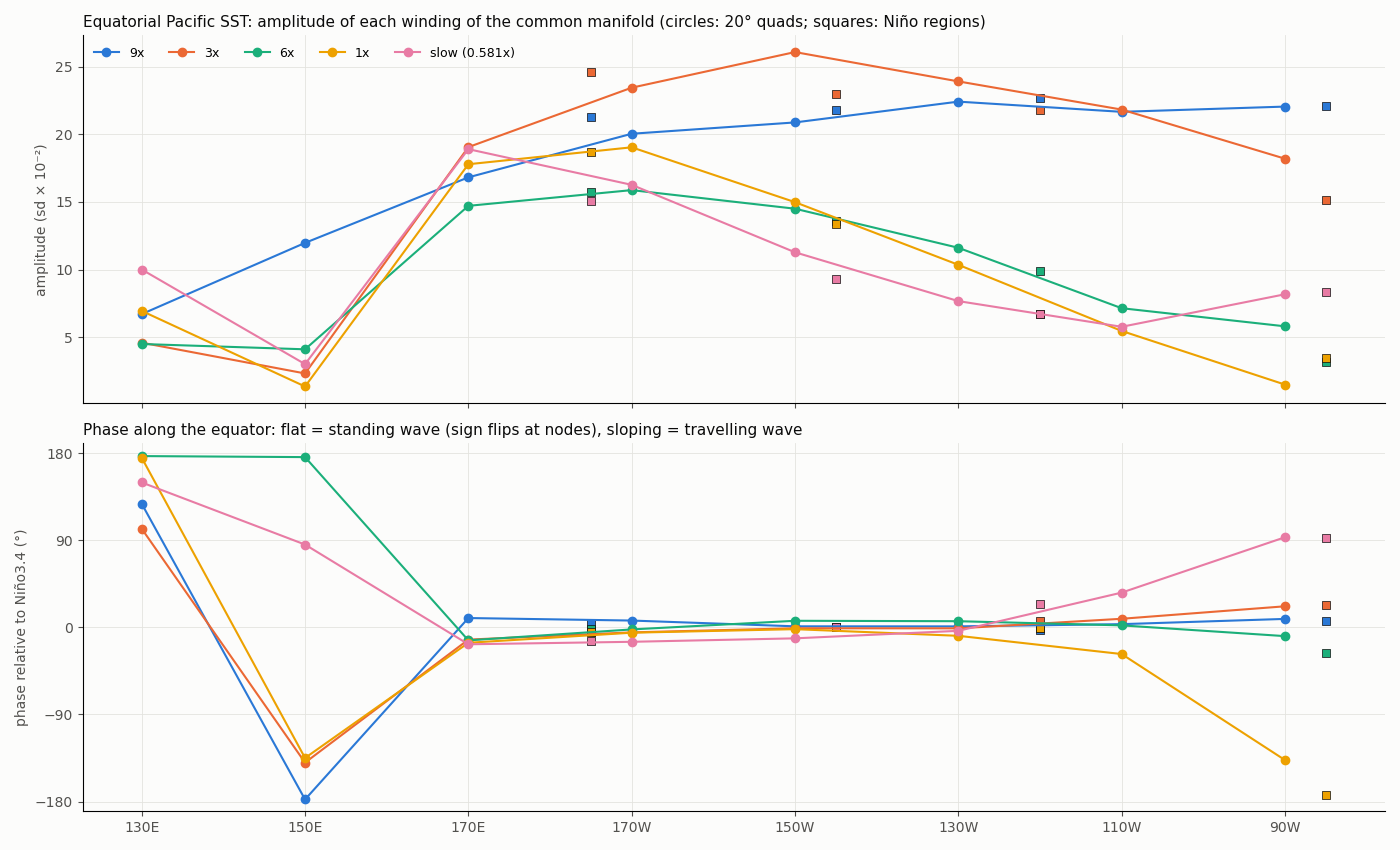

ENSO’s spatial structure. Each winding’s amplitude and phase along the equatorial Pacific: one phase east of a node near 160°E, with Darwin and Tahiti pressure locked in opposite phase. A standing wave, not a travelling one.

Code and data

• Every figure has a script of the same name (*.py). The scripts read fitted runs from experiments/Oct2026_generator/legs and data fetched with:
  • experiments/Oct2026_generator/ORAS5/fetch_d20.py (ORAS5 20 °C isotherm depth);
  • experiments/Oct2026_generator/SAO/fetch_sao.py and fetch_low.py (ERA5 equatorial winds, 1–200 hPa).

  The downloaded data files are not in the repository; the fetch scripts regenerate them.

• basin.py and basin_empirical.py draw the torus picture: the first is generic, the second uses the fitted windings.
• GEM_Chap11.tex and GEM_Chap12.tex are the chapter sources for the original LTE derivation. lte_mod.jpeg and twisty_wave.png are the original illustrations.

These documents are exploratory. Where a result is negative or not yet decisive, the documents say so (for example, the post-2006 QBO phase step, and the lack of winding-selective modes within the Pacific basin).
